Features:
- Customizable design
- Extendable backup time
- Compact modular form
- Quickly set up and installation
- Small footprint
- Smart lock option
- Additional accessories
UPS Cabinet
Contact
AIEMC offers a line of UPS cabinets for its rackmount UPS series. These UPS cabinets with integral overcurrent protection are compatible with battery configurations up to 45Ah and are optimized to meet application runtime needs.

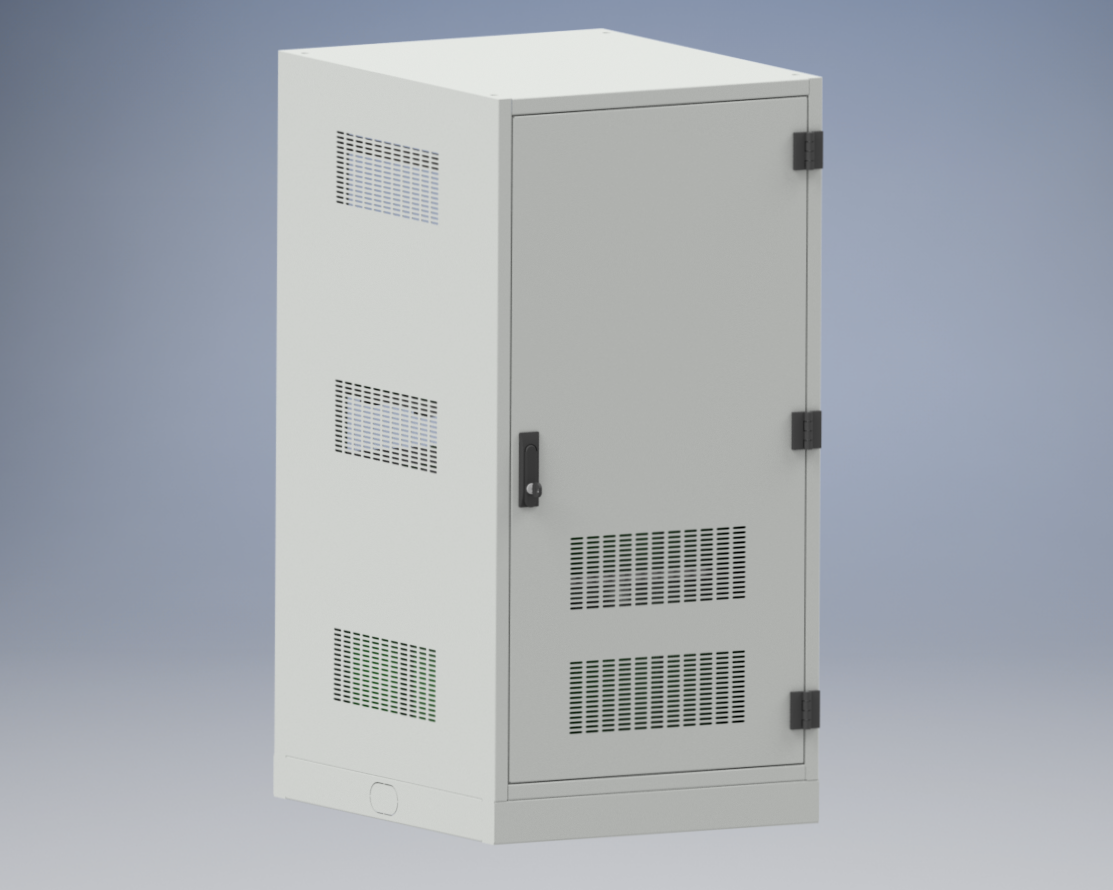

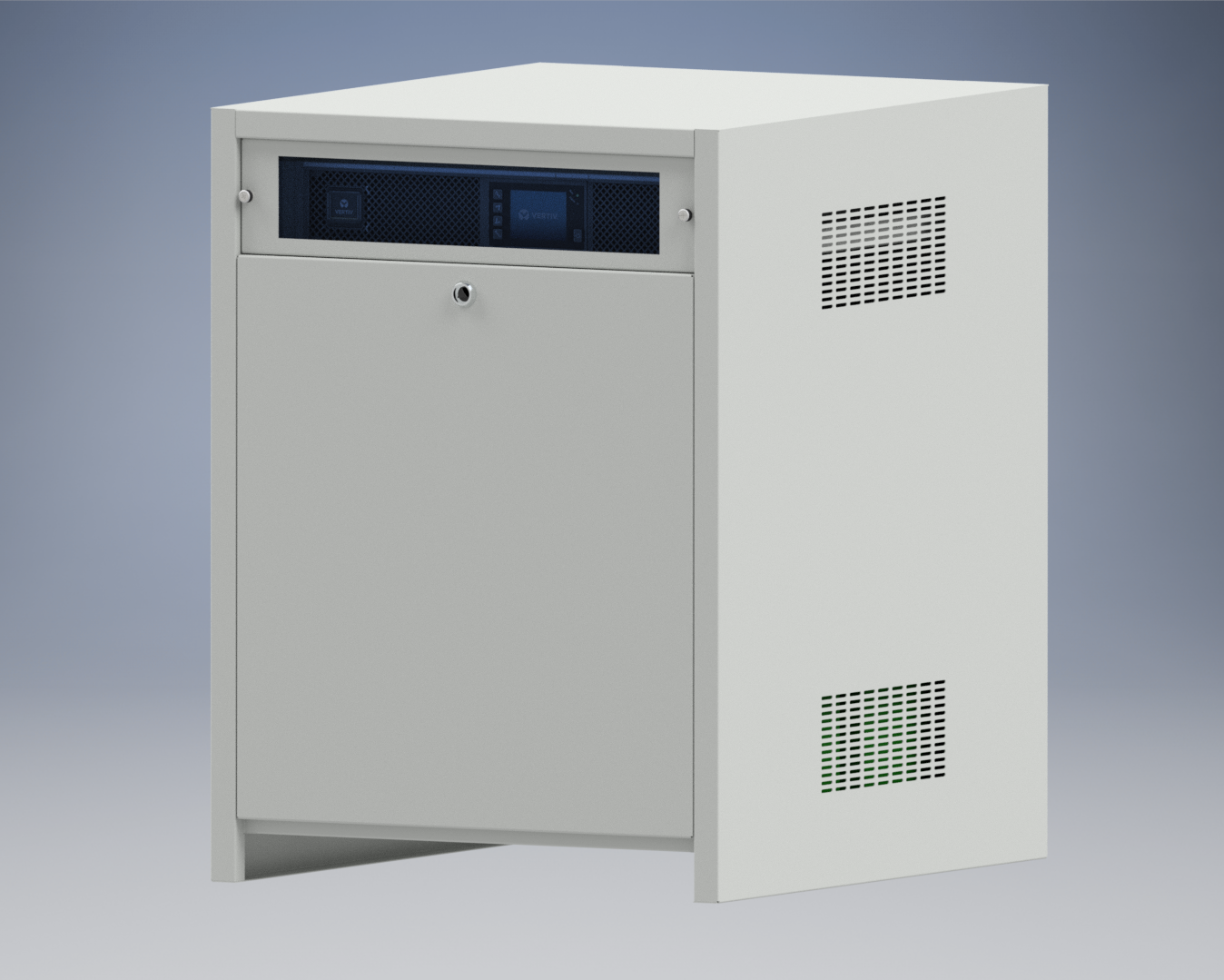

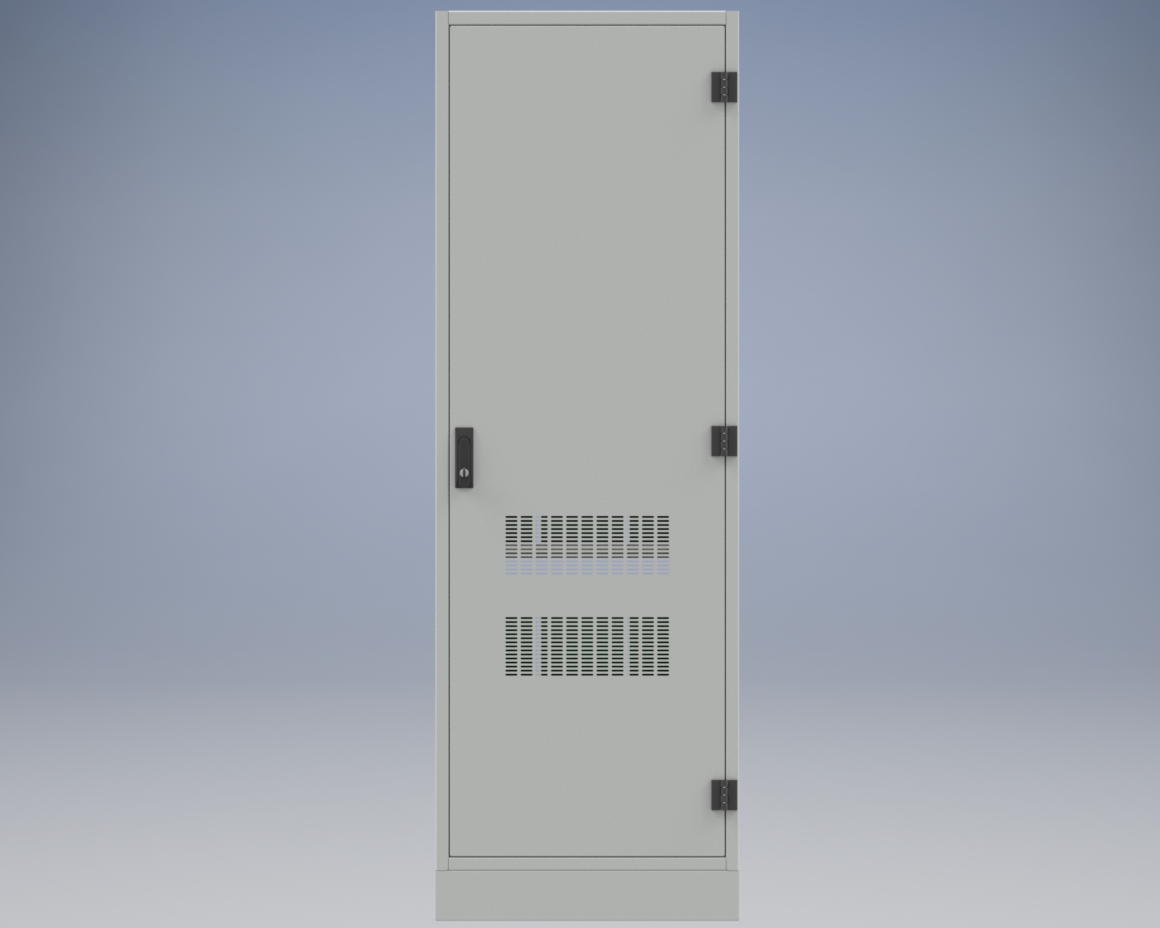

| MODEL NUMBER | UBC-8060 | UBC-1260 | UBC-1860 |
| Dimensions (mm)
(W x H x D) |
600x800x750 mm
(23.6”x31”5×29.5”) |
600x1200x750 mm
(23.6”x47.2”x29.5”) |
600x1800x750 mm
(23.6”x70.9”x29.5”) |
| Net Weight (kg) | 55.2 kg (121.7 lbs) | 95.7 kg (210.9 lbs) | 124.6 kg (274.7 lbs) |
| Battery Type | VRLA 12VDC | ||
| Quantity Battery | Up to 30 | Up to 60 | Up to 90 |
| Battery Capacity | 12Ah ~ 45Ah | ||
| Operating Temp, °C (°F) | 0 to 40 (32 to 104) | ||
| Storage Temp, °C (°F) | -15 to 40 (5 to 104) | ||
| Relative Humidity | 0 – 95% non-condensing | ||
| Operating Elevation | Up to 3,000 m (9,842.5 ft.) at 25 °C (77 °F) | ||
| Color | Black RAL9005/ White RAL7035 | ||
| Shipping Dimensions | 700x900x820 mm
(27.5”x35.4”x32.3”) |
700x1300x820 mm
(27.5”x51.2”x32.3”) |
700x1900x820 mm
(27.5”x74.8”x32.3”) |
| Shipping Weight | *may include battery and inter-link | ||
